Project Description
| Description | Specifications |
|---|---|

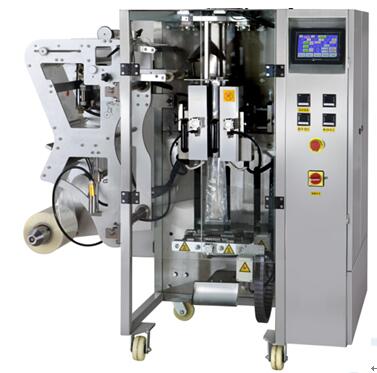

| Model | YS520 |
| Maximum packing speed | 50 bags/minute |
| Bag size | Length: 80-350mm; Width: 110-260mm |
| Bag type | Three sides sealing, four sides sealing |
| Maximum film width | 520mm |
| Film thickness | 0.04 -0.08 mm |
| Film material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE, etc |
| Belt pulling type | Servo vacuum film pulling |
| Air consumption | 0.8mpa, 0.3 cubic meters/minute |
| Voltage | 2.2 KW, 220V, 50/60Hz |
| Optional functions | Nitrogen filling device, punch function, chain bag device |
Applications:

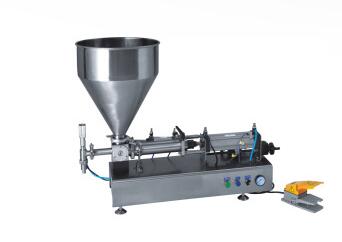

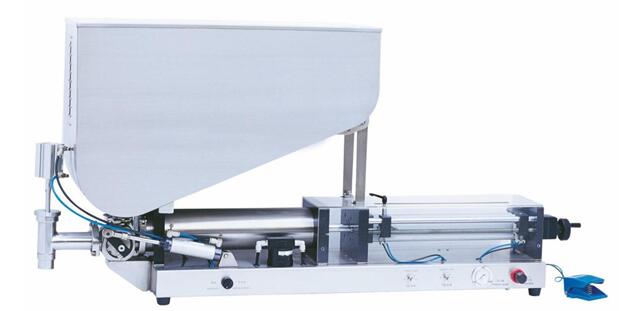

It’s suitable for packing different liquid, jam or cream by working with liquid pump or paste pump. Machine functions can be customized according to actual needs.
